Tool Room Machines
Leading Wholesaler and Trader of Cylindrical Grinding Machine, Tool Room EDM Machine, Tool Room Hydraulic Surface Grinding Machine, Tool Room Manual Surface Grinding Machine, Tool Room Milling Machine and Tool Room Radial Drill Machine from Vadodara.
| Business Type | Supplier, Trader |
| Operation Type | Manual, Hydraulic or CNC |
| Application | External Diameter (OD), Internal Diameter (ID), Taper & Face Grinding |
| Spindle Speed | 1500 - 2200 RPM |
| Max Grinding Diameter | 200 - 350 Mm |
| Max Grinding Length | 150 - 1500 Mm |
| Distance Between Centers | 400 - 1500 Mm |
| Swing Over Table | 200 - 320 Mm |
| Center Height | ~130 - 180 Mm |
| Table Movement | Manual or Hydraulic Reciprocating |
| Table Swivel | ±10° To ±30° |
| Work Head Swivel | Up To 90° |
| Grinding Wheel Size | 250 - 405 Mm Diameter |
| Wheel Head Motor | 2 - 5 HP |
| Accuracy | Up To ±0.002 - 0.005 Mm (high Precision) |
| Machine Weight | 700 - 3000+ Kg |
| Business Type | Supplier, Trader |
| Usage | Tool Room, Die & Mould Making, Precision Machining |
| Operation Type | Manual, ZNC or CNC |
| Technology | Electrical Discharge Machining |
| Working Principle | Material Removal Using Controlled Electrical Sparks |
| Work Table Size | 300 X 250 Mm To 600 X 400 Mm |
| Max Workpiece Weight | 100 - 500 Kg |
| Axis Movement | X, Y, Z (CNC Machines Up To 5-axis) |
| Table Travel | 300 X 200 X 200 Mm To 800 X 600 X 400 Mm |
| Positioning Accuracy | ±0.002 - 0.01 Mm |
| Control System | PLC or CNC Controller |
| Display | CNC Touchscreen Interface |
| Automation | Semi-automatic To Fully Automatic |
| Power Consumption | 3 - 10 KVA |
| Business Type | Supplier, Trader |
| Operation Type | Hydraulic |
| Application | Precision Surface Grinding,Tool Room, Die & Mould, Production Jobs |
| Table Size | 250 X 500 Mm To 1000 X 500 Mm Or Higher |
| Grinding Wheel Size | 200 X 16 X 32 Mm |
| Grinding Capacity | Up To 800 X 400 X 400 Mm |
| Table Travel (Longitudinal) | 500 - 1600 Mm |
| Cross Travel | 250 - 650 Mm |
| Max Grinding Height | 300 - 600 Mm |
| Table Movement | Hydraulic Reciprocating |
| Cross Feed | Manual + Automatic Feed |
| Feed Accuracy | 0.002 - 0.01 Mm |
| Spindle Motor Power | 1 HP To 5 HP |
| Accuracy | Up To ±0.005 Mm |
| Usage Area | Tool Rooms, Production Units, Precision Workshops |
| Machine Weight | 1000 - 3000 Kg |
| Business Type | Supplier, Trader |
| Table Size | 175×350 Mm To 600×300 Mm |
| Grinding Wheel Size | ~175–200 × 13–16 × 32 Mm |
| Operation Type | Manual (3-Axis Hand Operated) |
| Application | Precision Surface Grinding, Tool Room, Die & Mould Work |
| Grinding Capacity | Up To 600 × 300 × 300 Mm |
| Table Travel (Longitudinal) | ~620 Mm |
| Cross Travel | ~325 Mm |
| Max Grinding Height | 250–400 Mm |
| Work Load Capacity | 150 Kg |
| Table Movement | Manual Reciprocating |
| Spindle Speed | 2800 – 2850 RPM |
| Spindle Motor Power | 0.75 HP To 2 HP |
| Machine Weight | 1500–2000 Kg |

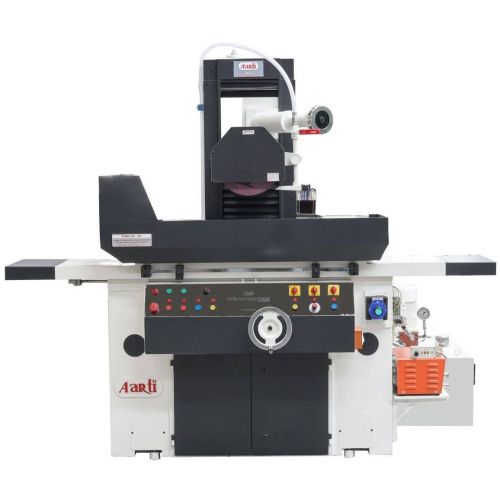

We offer a versatile Tool Room Manual Surface Grinding Machine designed for precision surface grinding applications. With a table size ranging from 175×350 mm to 600×300 mm, this machine boasts a grinding wheel size of ~175–200 × 13–16 × 32 mm. Operating on a manual (3-axis hand operated) system, it provides a grinding capacity of up to 600 × 300 × 300 mm. The machine features a table travel of ~620 mm, cross travel of ~325 mm, and a maximum grinding height of 250–400 mm. With a work load capacity of 150 kg, it ensures efficient manual reciprocating table movement for optimal results. Ideal for suppliers and traders in need of high-quality grinding equipment.
| Business Type | Supplier, Trader |
| Machine Type | Turret Milling Machine |
| Build Material | Heavy Duty Cast Iron Construction |
| Table Size | 800 X 250 Mm to 1270 X 254 Mm |
| Table Travel (X/Y/Z) | 500 / 300 / 400 Mm |
| Spindle Speed Range | 80 - 5400 RPM |
| Spindle Taper | R8 / NT30 / NT40 |
| Motor Power | 2 HP - 5 HP |
| Feed Type | Power Feed |
| Head Type | Swivel Head |
| Ram Travel | 300 Mm - 500 Mm |
| Accuracy Level | High Precision (Tool Room Grade) |
| Operations | Milling, Drilling, Boring, Slotting |
| Lubrication System | Automatic |
| Business Type | Supplier, Trader |
| Usage | Drilling, Tapping, Reaming, Boring, Counter Boring |
| Spindle Travel | 80 - 250 Mm |
| Operation Type | Manual or Semi-Automatic |
| Drilling Capacity | 13 Mm To 50 Mm |
| Table Size | 250 X 250 Mm To 500 X 500 Mm |
| Column Diameter | 70 - 100 Mm |
| Distance Spindle To Table | 600 - 700 Mm |
| Distance Spindle To Base | 800 - 1000 Mm |
| Table Movement | Vertical Adjustable |
| Table Type | T-Slot Table For Clamping Jobs |
| Spindle Taper | MT-2 / MT-3 |
| Speed Range | 80 - 3500 RPM |
| Number Of Speeds | 6 To 12 Speed Options |
| Motor Power | 0.5 HP To 3 HP |
